以下内容来源于官方源码、 README 文档、测试 Demo 或个人使用总结！

UIViewController+KNSemiModal Category

UIViewController+KNSemiModal is an effort to make a replica of semi-modal view with pushed-back stacked animation found in the beautiful Park Guides by National Geographic app. You can see this original semi-modal view below.

This library (ARC) is designed as a Category to UIViewController so you don’t have to subclass and you can simply drop in any project and it will just work!

UIViewController+KNSemiModal 可以实现半模态视图的堆叠效果，使用范畴（Category）实现，代码侵入性较小。

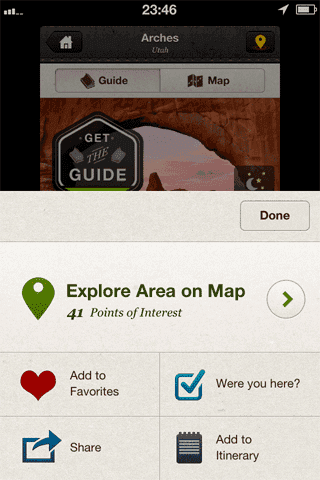

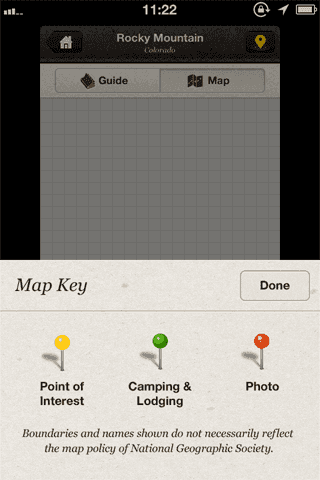

Original screenshot

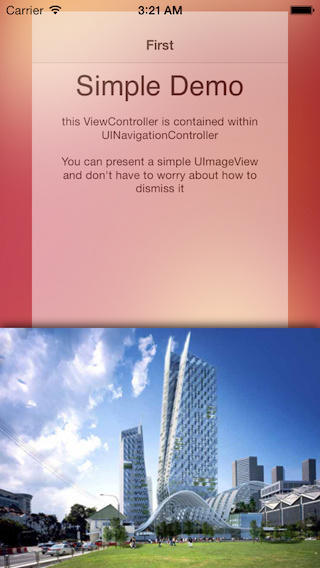

Replica (view demo video to see the beautiful animation)*

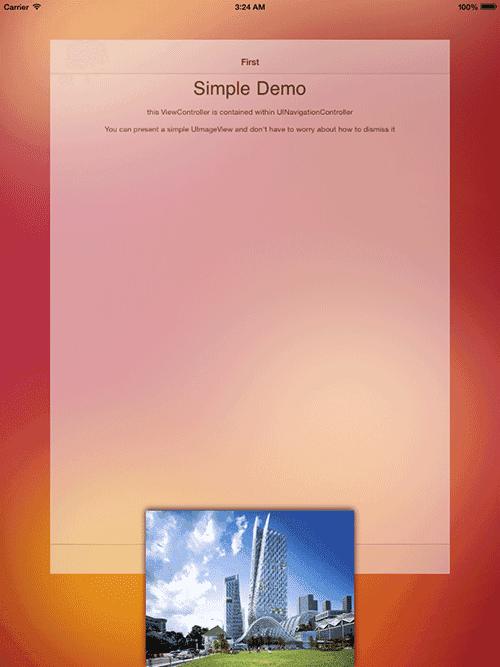

On iPad

Features

Works with bare UIViewController
Works with UIViewController contained inside UINavigationController
Works with UIViewController contained inside UINavigationController, contained inside UITabbarController
Auto handling of modal frame size
Auto handling of touch area for dismissal
Resizable after presenting so that keyboard related interactions are possible
Easy to understand and very small code base, only 2 files
Trivial to implement as subclass
Landscape support (not during presentation)
Only use basic CAAnimation
iPad support (experimental)
Minimum iOS 5.0 (if you need 4.x support, use older commits before Jan 2013)

Optional parameters

animation duration
parent alpha
optional push-back
shadow opacity
disabling the cancel action
transition style: slide up, fade

Easily extend this to anything you would want to make configurable. Feel free to submit pull requests.

可选参数：

// 结构，相关的配置参数
extern const struct KNSemiModalOptionKeys {
    __unsafe_unretained NSString *traverseParentHierarchy; // 遍历父层次结构，BOOL类型. default is YES.
    __unsafe_unretained NSString *pushParentBack;           // 推回父视图，BOOL类型. default is YES.
    __unsafe_unretained NSString *animationDuration; // 动画延时，double 类型, in seconds. default is 0.5.
    __unsafe_unretained NSString *parentAlpha;       // 父视图透明度，float 类型.值越小越暗. default is 0.5.
    __unsafe_unretained NSString *parentScale;       // 父视图缩放比例，double 类型 default is 0.8
    __unsafe_unretained NSString *shadowOpacity;     // 阴影不透明度，default is 0.8
    __unsafe_unretained NSString *transitionStyle;     // 动画类型，NSNumber 类型
    __unsafe_unretained NSString *disableCancel;     // 是否禁用取消，BOOL 类型，default is NO.
    __unsafe_unretained NSString *backgroundView;    // 自定义背景视图，UIView 类型
} KNSemiModalOptionKeys;

// 动画类型
NS_ENUM(NSUInteger, KNSemiModalTransitionStyle) {
    KNSemiModalTransitionStyleSlideUp,      // 向上滑动
    KNSemiModalTransitionStyleFadeInOut,    // 淡入淡出
    KNSemiModalTransitionStyleFadeIn,       // 淡入
    KNSemiModalTransitionStyleFadeOut,      // 淡出
};

// 使用时要根据指定类型封装
-(void)kn_registerDefaultsAndOptions:(NSDictionary*)options {
    [self ym_registerOptions:options defaults:@{
     KNSemiModalOptionKeys.traverseParentHierarchy : @(YES),
     KNSemiModalOptionKeys.pushParentBack : @(YES),
     KNSemiModalOptionKeys.animationDuration : @(0.5),
     KNSemiModalOptionKeys.parentAlpha : @(0.5),
     KNSemiModalOptionKeys.parentScale : @(0.8),
     KNSemiModalOptionKeys.shadowOpacity : @(0.8),
     KNSemiModalOptionKeys.transitionStyle : @(KNSemiModalTransitionStyleSlideUp),
     KNSemiModalOptionKeys.disableCancel : @(NO),
     }];
}

    NSDictionary *options = @{
                  // 遍历父层次结构，BOOL类型. default is YES.
                  KNSemiModalOptionKeys.traverseParentHierarchy:@(YES),
                  // 父视图后移动画，BOOL类型. default is YES.
                  KNSemiModalOptionKeys.pushParentBack:@(NO),
                  // 动画延时，double 类型. in seconds. default is 0.5.
                  KNSemiModalOptionKeys.animationDuration:@(0.25),
                  // 父视图透明度，float 类型.值越小越暗. default is 0.5.
                  KNSemiModalOptionKeys.parentAlpha:@(0.5),
                  // 父视图缩放比例，double 类型 default is 0.8
                  KNSemiModalOptionKeys.parentScale:@(1),
                  // 阴影不透明度，default is 0.8
                  KNSemiModalOptionKeys.shadowOpacity:@(0.6),
                  // 动画类型，NSNumber 类型
                  KNSemiModalOptionKeys.transitionStyle:        @(KNSemiModalTransitionStyleFadeInOut),
                  // 是否禁用取消，BOOL 类型，default is NO.
                  KNSemiModalOptionKeys.disableCancel:@(NO),
                  // 自定义背景视图，UIView 类型
                  KNSemiModalOptionKeys.backgroundView:[UIView new]
                              };

Installation / How to use

Copy 4 files in Source folder to your project
Add QuartzCore.framework to your project
#import "UIViewController+KNSemiModal.h" in your ViewController
Call [self presentSemiModalView:myView]
Call [self dismissSemiModalView] either from parent/presenting or child/presented controller

使用

官方 Demo1

显示视图

- (IBAction)buttonDidTouch:(id)sender {
  // 你可以呈现一个简单的 UIImageView 或任何其他的 UIView ，而且不需要关心关闭方法
  UIImageView * imagev = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"temp.jpg"]];
  UIImageView * bgimgv = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"background_01"]];
  [self presentSemiView:imagev
            withOptions:@{
                          KNSemiModalOptionKeys.backgroundView:bgimgv
                          }];
}

官方 Demo2：

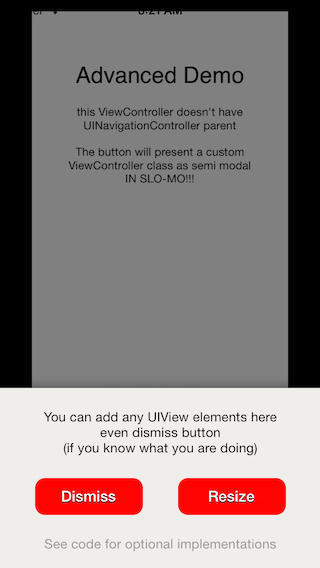

显示大小可以改变的视图

部分代码：

@implementation KNSecondViewController

- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil {
    self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil];
    if (self) {
      self.title = @"Second";
      self.tabBarItem.image = [UIImage imageNamed:@"second"];

      // 请注意，你需要拥有正在呈现的ViewController的所有权
      semiVC = [[KNThirdViewController alloc] initWithNibName:@"KNThirdViewController" bundle:nil];

      // 您可以选择收听通知
      // 视图显示完成后
      [[NSNotificationCenter defaultCenter] addObserver:self
                                               selector:@selector(semiModalPresented:)
                                                   name:kSemiModalDidShowNotification
                                                 object:nil];
      // 视图隐藏后
      [[NSNotificationCenter defaultCenter] addObserver:self
                                               selector:@selector(semiModalDismissed:)
                                                   name:kSemiModalDidHideNotification
                                                 object:nil];
      // 视图被重新调整大小后
      [[NSNotificationCenter defaultCenter] addObserver:self
                                               selector:@selector(semiModalResized:)
                                                   name:kSemiModalWasResizedNotification
                                                 object:nil];
    }
    return self;
}

#pragma mark - Demo

- (IBAction)buttonDidTouch:(id)sender {

  // You can also present a UIViewController with complex views in it
  // and optionally containing an explicit dismiss button for semi modal
  [self presentSemiViewController:semiVC withOptions:@{
         KNSemiModalOptionKeys.pushParentBack    : @(YES),
         KNSemiModalOptionKeys.animationDuration : @(2.0),
         KNSemiModalOptionKeys.shadowOpacity     : @(0.3),
     }];

}

#pragma mark - Optional notifications

- (void) semiModalResized:(NSNotification *) notification {
  if(notification.object == self){
    NSLog(@"The view controller presented was been resized");
  }
}

- (void)semiModalPresented:(NSNotification *) notification {
  if (notification.object == self) {
    NSLog(@"This view controller just shown a view with semi modal annimation");
  }
}
- (void)semiModalDismissed:(NSNotification *) notification {
  if (notification.object == self) {
    NSLog(@"A view controller was dismissed with semi modal annimation");
  }
}

-(void)dealloc {
  [[NSNotificationCenter defaultCenter] removeObserver:self];
}

被呈现视图控制器中的动作方法

// 关闭视图
- (IBAction)dismissButtonDidTouch:(id)sender {

  // 调用父控件ViewController 以关闭视图
  // 视图层次结构要小心
  UIViewController * parent = [self.view containingViewController];
  if ([parent respondsToSelector:@selector(dismissSemiModalView)]) {
    [parent dismissSemiModalView];
  }

}

// 重新设置大小
- (IBAction)resizeSemiModalView:(id)sender {
  UIViewController * parent = [self.view containingViewController];
  if ([parent respondsToSelector:@selector(resizeSemiView:)]) {
    [parent resizeSemiView:CGSizeMake(320, arc4random() % 280 + 180)];
  }
}

官方 Demo3：

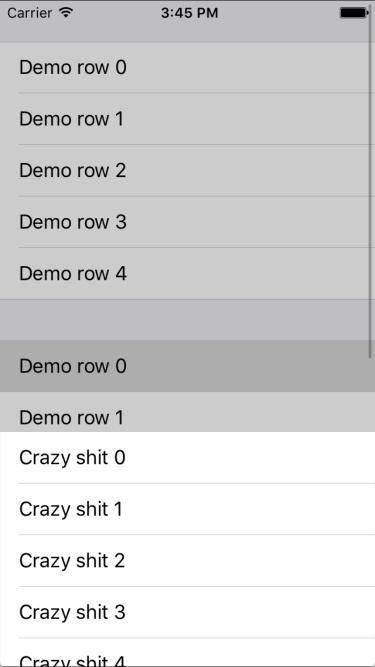

显示 tableView 列表：

- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath {
  [tableView deselectRowAtIndexPath:indexPath animated:NO];

  // You have to retain the ownership of ViewController that you are presenting
  // ⚠️必须要保留被呈现视图控制器的拥有权
  // ⚠️就是说被呈现的视图控制器要设置成它的属性或者实例对象
  [self presentSemiViewController:modalVC
                      withOptions:@{
                     KNSemiModalOptionKeys.pushParentBack : @(NO),
                     KNSemiModalOptionKeys.parentAlpha : @(0.8)
                                    }];

  // 以下的代码是无效的
//  KNModalTableViewController * vc = [[KNModalTableViewController alloc] initWithStyle:UITableViewStylePlain];
//  [self presentSemiViewController:vc];
}

TableView 的 frame 属性在其指定初始化方法中设置：

- (id)initWithStyle:(UITableViewStyle)style {
  self = [super initWithStyle:style];
  if (self) {
    // 设置 frame
    self.view.frame = CGRectMake(0, 0, 320, 200);
  }
  return self;
}

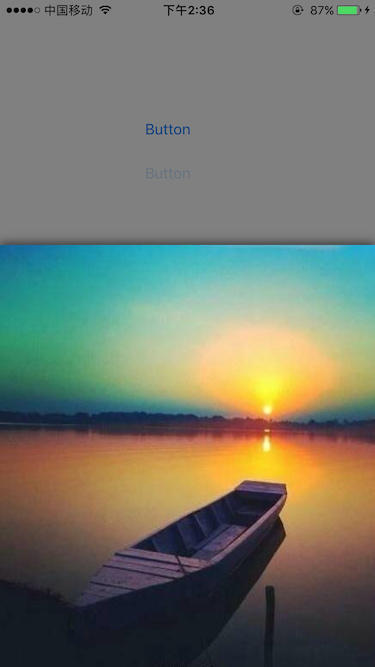

以模态方式显示一张图片

实现代码：

- (IBAction)buttonDidClicked:(id)sender {

    // 加载图片方式一，有缓存
    UIImageView *imageView = [[UIImageView alloc] initWithImage:[UIImage imageNamed:@"boat"]];
    // 加载图片方式二，无缓存
    // NSString *path = [[NSBundle mainBundle] pathForResource:@"boat" ofType:@"png"];
    // UIImage *fileImage = [UIImage imageWithContentsOfFile:path];

    NSDictionary *options = @{
                  // 父视图后移动画，BOOL类型. default is YES.
                  KNSemiModalOptionKeys.pushParentBack:         @(NO),
                  // 动画延时，double 类型. in seconds. default is 0.5.
                  KNSemiModalOptionKeys.animationDuration:      @(0.25),
                  // 父视图透明度，float 类型.值越小越暗. default is 0.5.
                  KNSemiModalOptionKeys.parentAlpha:            @(0.5),
                  // 父视图缩放比例，double 类型 default is 0.8
                  KNSemiModalOptionKeys.parentScale:            @(1),
                  // 阴影不透明度，default is 0.8
                  KNSemiModalOptionKeys.shadowOpacity:          @(0.6),
                  // 动画类型，NSNumber 类型
                  KNSemiModalOptionKeys.transitionStyle:        @(KNSemiModalTransitionStyleFadeInOut),
                  // 是否禁用取消，BOOL 类型，default is NO.
                  KNSemiModalOptionKeys.disableCancel:          @(NO),
                              };
    [self presentSemiView:imageView withOptions:options completion:^{
        NSLog(@"completion!");
    }];
}
