MJRefresh—— 下拉刷新控件

发表于 更新于 分类于 Valine：
本文字数： 11k 阅读时长 ≈ 10 分钟

(logo)

MJRefresh

  • An easy way to use pull-to-refresh—— 实现下拉刷新控件

Support what kinds of controls to refresh

  • UIScrollView、UITableView、UICollectionView、UIWebView

How to use MJRefresh

  • Installation with CocoaPods：pod 'MJRefresh'
  • Manual import：
    • Drag All files in the MJRefresh folder to project
    • Import the main file：#import "MJRefresh.h"
Base                        Custom
MJRefresh.bundle            MJRefresh.h
MJRefreshConst.h            MJRefreshConst.m
UIScrollView+MJExtension.h  UIScrollView+MJExtension.m
UIScrollView+MJRefresh.h    UIScrollView+MJRefresh.m
UIView+MJExtension.h        UIView+MJExtension.m

More than hundreds of Apps are using MJRefresh

  • More information of App can focus on：M 了个 J - 博客园

The Class Structure Chart of MJRefresh

  • The class of red text in the chart：You can use them directly

    • The drop-down refresh control types —— 下拉刷新类型
      • Normal：MJRefreshNormalHeader
      • Gif：MJRefreshGifHeader
    • The pull to refresh control types —— 上拉刷新类型
      • Auto refresh
        • Normal：MJRefreshAutoNormalFooter
        • Gif：MJRefreshAutoGifFooter
      • Auto Back
        • Normal：MJRefreshBackNormalFooter
        • Gif：MJRefreshBackGifFooter

  • The class of non-red text in the chart：For inheritance，to use DIY the control of refresh

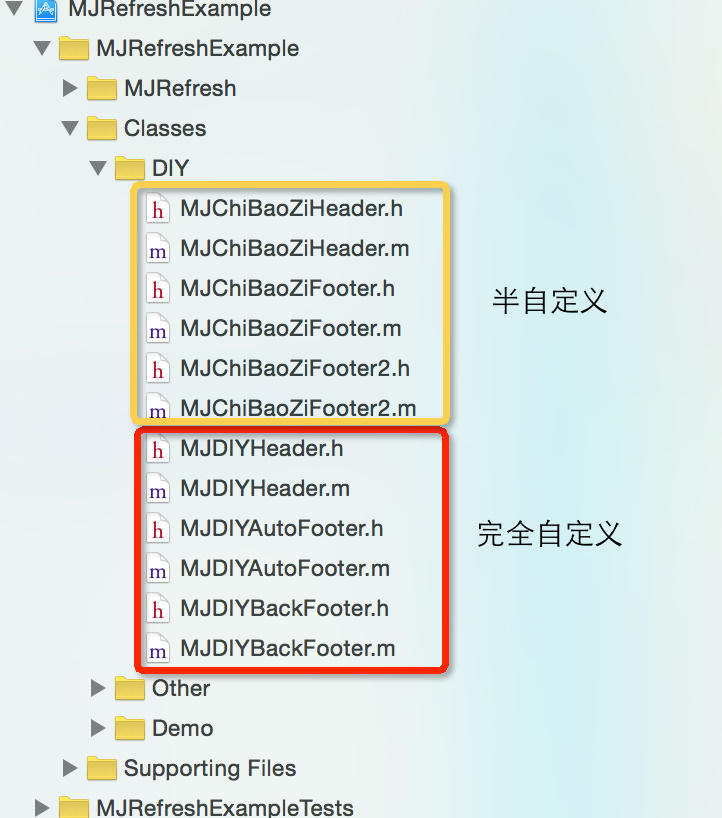

  • About how to DIY the control of refresh，You can refer the Class in below Chart

MJRefreshComponent.h

/** The Base Class of refresh control */
@interface MJRefreshComponent : UIView
#pragma mark -  Control the state of Refresh

/** BeginRefreshing */
- (void)beginRefreshing;
/** EndRefreshing */
- (void)endRefreshing;
/** IsRefreshing */
- (BOOL)isRefreshing;

#pragma mark - Other
/** According to the drag ratio to change alpha automatically */
// 根据拖动比例自动更改alpha
// 设置自动切换透明度(在导航栏下面自动隐藏)
@property (assign, nonatomic, getter=isAutomaticallyChangeAlpha) BOOL automaticallyChangeAlpha;
@end

MJRefreshHeader.h

@interface MJRefreshHeader : MJRefreshComponent
/** Creat header */
+ (instancetype)headerWithRefreshingBlock:(MJRefreshComponentRefreshingBlock)refreshingBlock;
/** Creat header */
+ (instancetype)headerWithRefreshingTarget:(id)target refreshingAction:(SEL)action;

/** This key is used to storage the time that the last time of drown-down successfully */
/** 该关键字用于存储上次成功下拉刷新的时间*/
@property (copy, nonatomic) NSString *lastUpdatedTimeKey;
/** The last time of drown-down successfully */
@property (strong, nonatomic, readonly) NSDate *lastUpdatedTime;

/** Ignored scrollView contentInset top */
@property (assign, nonatomic) CGFloat ignoredScrollViewContentInsetTop;
@end

MJRefreshFooter.h

@interface MJRefreshFooter : MJRefreshComponent
/** Creat footer */
+ (instancetype)footerWithRefreshingBlock:(MJRefreshComponentRefreshingBlock)refreshingBlock;
/** Creat footer */
+ (instancetype)footerWithRefreshingTarget:(id)target refreshingAction:(SEL)action;

/** NoticeNoMoreData */
- (void)noticeNoMoreData;
/** ResetNoMoreData（Clear the status of NoMoreData ） */
- (void)resetNoMoreData;

/** Ignored scrollView contentInset bottom */
@property (assign, nonatomic) CGFloat ignoredScrollViewContentInsetBottom;

/** Automaticlly show or hidden by the count of data（Show-have data，Hidden- no data） */
@property (assign, nonatomic) BOOL automaticallyHidden;
@end

MJRefreshAutoFooter.h

@interface MJRefreshAutoFooter : MJRefreshFooter
/** Is Automatically Refresh(Default is Yes) */
@property (assign, nonatomic, getter=isAutomaticallyRefresh) BOOL automaticallyRefresh;

/** When there is much at the bottom of the control is automatically refresh(Default is 1.0，Is at the bottom of the control appears in full, will refresh automatically) */
@property (assign, nonatomic) CGFloat triggerAutomaticallyRefreshPercent;
@end

Reference

* Due to there are more functions of this framework，Don't write specific text describe its usage

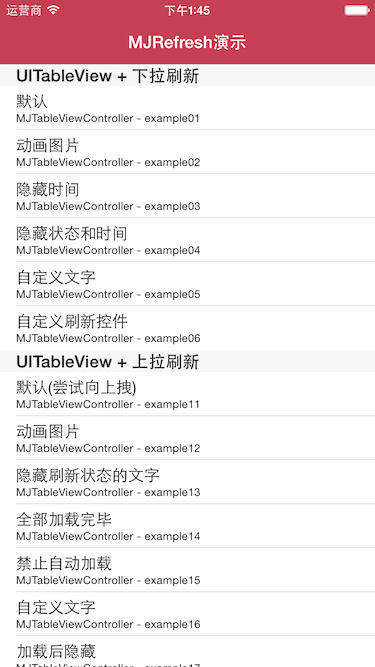

* You can directly reference examples MJTableViewController、MJCollectionViewController、MJWebViewController，More intuitive and fast.

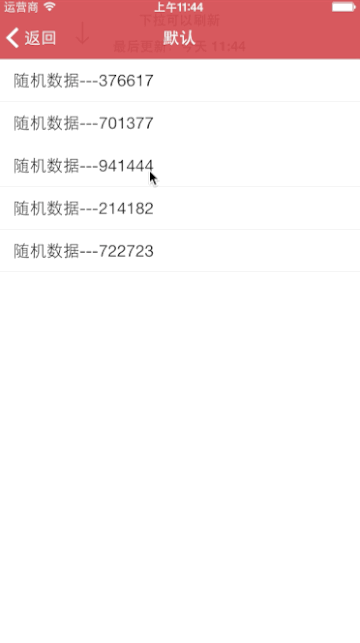

The drop-down refresh 01-Default

self.tableView.header = [MJRefreshNormalHeader headerWithRefreshingBlock:^{
   // 设置回调（一旦进入刷新状态就会调用这个refreshingBlock）
}];
或

self.tableView.header = [MJRefreshNormalHeader headerWithRefreshingTarget:self refreshingAction:@selector(loadNewData)];

// 马上进入刷新状态
[self.tableView.mj_header beginRefreshing];

//...
// 获取到数据后刷新列表
[self.tableView reloadData];
// 拿到当前的下拉刷新控件，结束刷新状态
[self.tableView.mj_header endRefreshing];

(下拉刷新01-普通)

The drop-down refresh 02-Animation image

// 设置回调（一旦进入刷新状态，就调用target的action，也就是调用self的loadNewData方法）
MJRefreshGifHeader *header = [MJRefreshGifHeader headerWithRefreshingTarget:self refreshingAction:@selector(loadNewData)];

// 设置普通状态的动画图片
NSMutableArray *idleImages = [NSMutableArray array];
for (NSUInteger i = 1; i<=60; i++) {
    UIImage *image = [UIImage imageNamed:[NSString stringWithFormat:@"dropdown_anim__000%zd", i]];
    [idleImages addObject:image];
}
 [header setImages:idleImages forState:MJRefreshStateIdle];

// 设置即将刷新状态的动画图片（一松开就会刷新的状态）
NSMutableArray *refreshingImages = [NSMutableArray array];
for (NSUInteger i = 1; i<=3; i++) {
    UIImage *image = [UIImage imageNamed:[NSString stringWithFormat:@"dropdown_loading_0%zd", i]];
    [refreshingImages addObject:image];
}
[header setImages:refreshingImages forState:MJRefreshStatePulling];

// 设置正在刷新状态的动画图片
[header setImages:refreshingImages forState:MJRefreshStateRefreshing];

// 设置header
self.tableView.mj_header = header;

(下拉刷新02-动画图片)

The drop-down refresh 03-Hide the time

// 隐藏时间
header.lastUpdatedTimeLabel.hidden = YES;

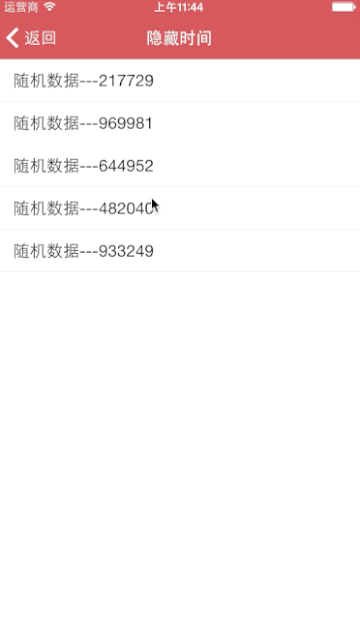

(下拉刷新03-隐藏时间)

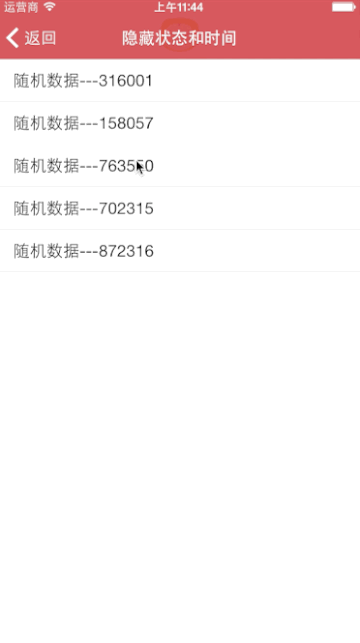

The drop-down refresh 04-Hide status and time

// 隐藏时间
header.lastUpdatedTimeLabel.hidden = YES;

// 隐藏状态
header.stateLabel.hidden = YES;

(下拉刷新04-隐藏状态和时间)

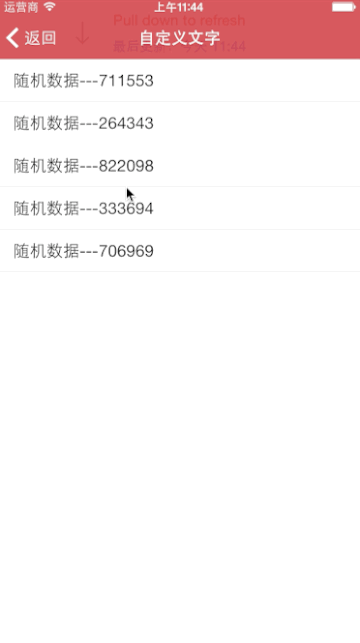

The drop-down refresh 05-DIY title

// 设置回调（一旦进入刷新状态，就调用target的action，也就是调用self的loadNewData方法）
MJRefreshNormalHeader *header = [MJRefreshNormalHeader headerWithRefreshingTarget:self refreshingAction:@selector(loadNewData)];

// 设置文字
[header setTitle:@"Pull down to refresh" forState:MJRefreshStateIdle];
[header setTitle:@"Release to refresh" forState:MJRefreshStatePulling];
[header setTitle:@"Loading ..." forState:MJRefreshStateRefreshing];

// 设置字体
header.stateLabel.font = [UIFont systemFontOfSize:15];
header.lastUpdatedTimeLabel.font = [UIFont systemFontOfSize:14];

// 设置颜色
header.stateLabel.textColor = [UIColor redColor];
header.lastUpdatedTimeLabel.textColor = [UIColor blueColor];

// 马上进入刷新状态
[header beginRefreshing];

// 设置刷新控件
self.tableView.mj_header = header;

(下拉刷新05-自定义文字)

The drop-down refresh 06-DIY the control of refresh

self.tableView.mj_header = [MJDIYHeader headerWithRefreshingTarget:self refreshingAction:@selector(loadNewData)];
// Implementation reference to MJDIYHeader.h和MJDIYHeader.m

(下拉刷新06-自定义刷新控件)

The pull to refresh 01-Default

self.tableView.mj_footer = [MJRefreshAutoNormalFooter footerWithRefreshingBlock:^{
    //Call this Block When enter the refresh status automatically
}];
或
// 设置回调（一旦进入刷新状态，就调用target的action，也就是调用self的loadNewData方法）
self.tableView.mj_footer = [MJRefreshAutoNormalFooter footerWithRefreshingTarget:self refreshingAction:@selector(loadMoreData)];

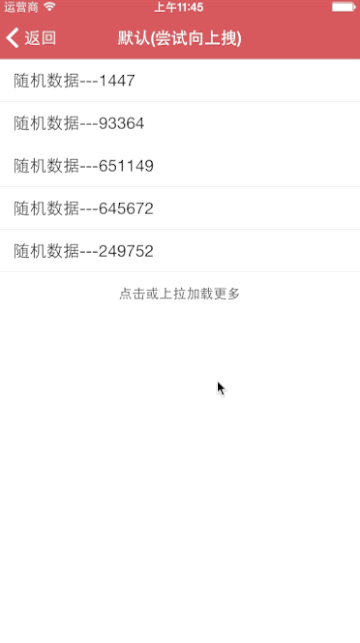

(上拉刷新01-默认)

The pull to refresh 02-Animation image

// 设置回调（一旦进入刷新状态，就调用target的action，也就是调用self的loadMoreData方法）
MJRefreshAutoGifFooter *footer = [MJRefreshAutoGifFooter footerWithRefreshingTarget:self refreshingAction:@selector(loadMoreData)];

// 设置正在刷新状态的动画图片
NSMutableArray *refreshingImages = [NSMutableArray array];
for (NSUInteger i = 1; i<=3; i++) {
    UIImage *image = [UIImage imageNamed:[NSString stringWithFormat:@"dropdown_loading_0%zd", i]];
    [refreshingImages addObject:image];
}
[footer setImages:refreshingImages forState:MJRefreshStateRefreshing];

// 设置上拉刷新控件
self.tableView.mj_footer = footer;

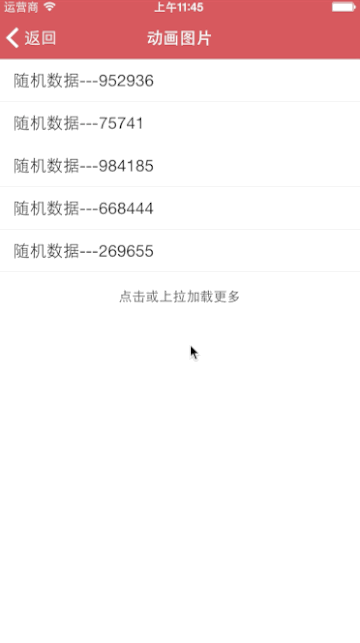

(上拉刷新02-动画图片)

The pull to refresh 03-Hide the title of refresh status

// 当上拉刷新控件出现50%时（出现一半），就会自动刷新。这个值默认是1.0（也就是上拉刷新100%出现时，才会自动刷新）
//    footer.triggerAutomaticallyRefreshPercent = 0.5;

// 隐藏刷新状态的文字
footer.refreshingTitleHidden = YES;
// If does have not above method，then use footer.stateLabel.hidden = YES;

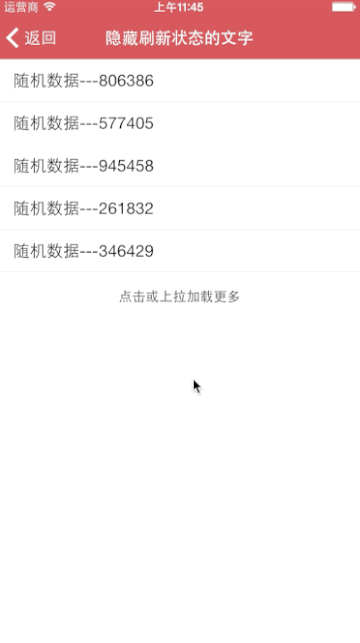

(上拉刷新03-隐藏刷新状态的文字)

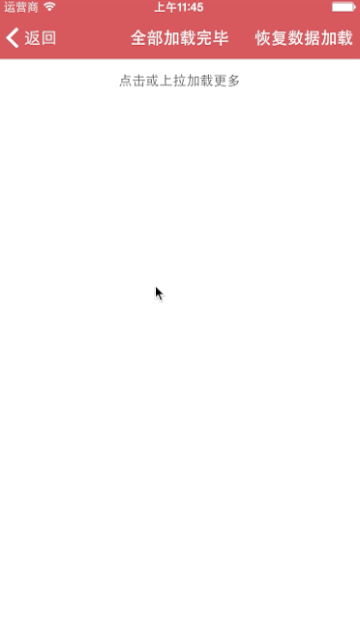

The pull to refresh 04-All loaded

//...
// 刷新表格
[tableView reloadData];
// 拿到当前的上拉刷新控件，文字变为没有更多数据的状态
[tableView.mj_footer endRefreshingWithNoMoreData];

(上拉刷新04-全部加载完毕)

The pull to refresh 05-DIY title

// 添加默认的上拉刷新
// 设置回调（一旦进入刷新状态，就调用target的action，也就是调用self的loadMoreData方法）
MJRefreshAutoNormalFooter *footer = [MJRefreshAutoNormalFooter footerWithRefreshingTarget:self refreshingAction:@selector(loadMoreData)];

// 设置文字
[footer setTitle:@"Click or drag up to refresh" forState:MJRefreshStateIdle];
[footer setTitle:@"Loading more ..." forState:MJRefreshStateRefreshing];
[footer setTitle:@"No more data" forState:MJRefreshStateNoMoreData];

// 设置字体
footer.stateLabel.font = [UIFont systemFontOfSize:17];

// 设置颜色
footer.stateLabel.textColor = [UIColor blueColor];

// 设置footer
self.tableView.mj_footer = footer;

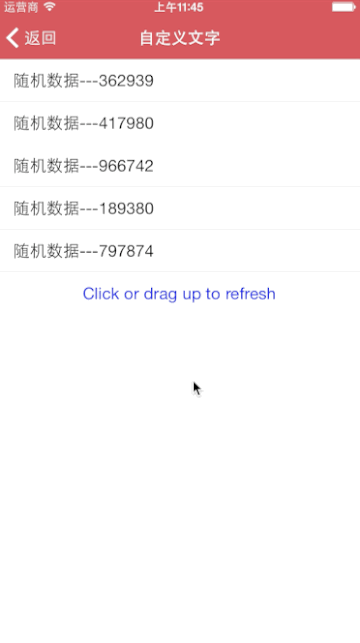

(上拉刷新05-自定义文字)

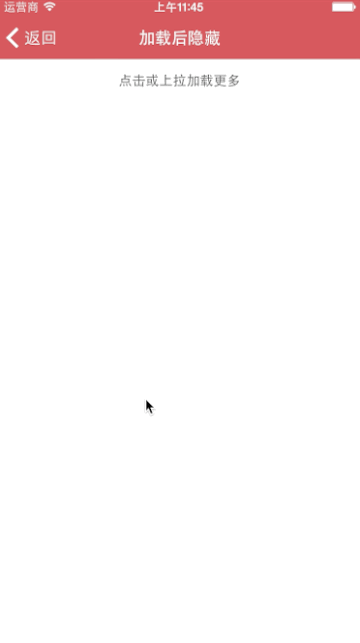

The pull to refresh 06-Hidden After loaded

//...
// 刷新表格
[tableView reloadData];
// 隐藏当前的上拉刷新控件
tableView.mj_footer.hidden = YES;

(上拉刷新06-加载后隐藏)

The pull to refresh 07-Automatic back of the pull01

// 设置回调（一旦进入刷新状态，就调用target的action，也就是调用self的loadMoreData方法）
self.tableView.mj_footer = [MJRefreshBackNormalFooter footerWithRefreshingTarget:self refreshingAction:@selector(loadMoreData)];
// 设置了底部inset
self.tableView.contentInset = UIEdgeInsetsMake(0, 0, 30, 0);
// 忽略掉底部inset
self.tableView.mj_footer.ignoredScrollViewContentInsetBottom = 30;

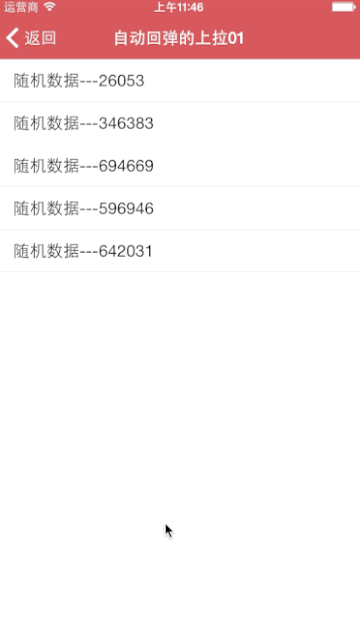

(上拉刷新07-自动回弹的上拉01)

The pull to refresh 08-Automatic back of the pull02

MJRefreshBackGifFooter *footer = [MJRefreshBackGifFooter footerWithRefreshingTarget:self refreshingAction:@selector(loadMoreData)];

// Set the normal state of the animated image
[footer setImages:idleImages forState:MJRefreshStateIdle];
//  Set the pulling state of animated images（Enter the status of refreshing as soon as loosen）
[footer setImages:pullingImages forState:MJRefreshStatePulling];
// Set the refreshing state of animated images
[footer setImages:refreshingImages forState:MJRefreshStateRefreshing];

// Set footer
self.tableView.mj_footer = footer;

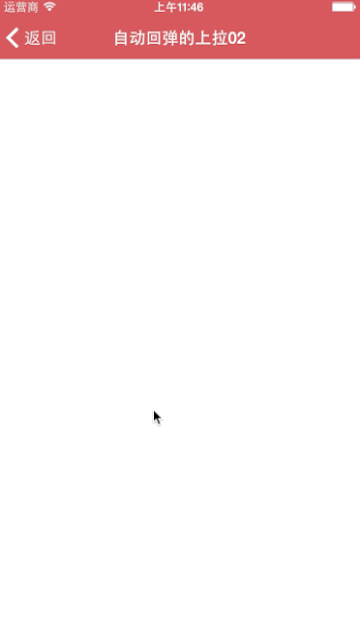

(上拉刷新07-自动回弹的上拉02)

The pull to refresh 09-DIY the control of refresh(Automatic refresh)

self.tableView.mj_footer = [MJDIYAutoFooter footerWithRefreshingTarget:self refreshingAction:@selector(loadMoreData)];
// Implementation reference to MJDIYAutoFooter.h和MJDIYAutoFooter.m

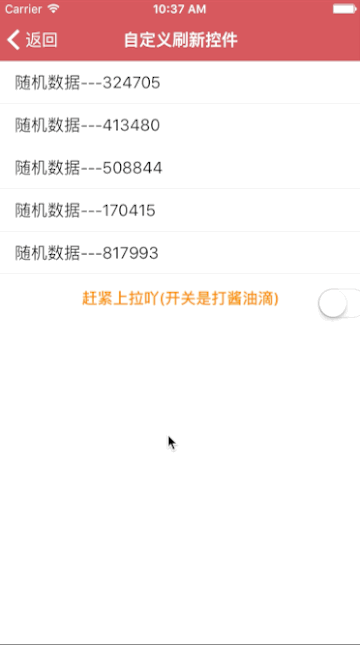

(上拉刷新09-自定义刷新控件(自动刷新))

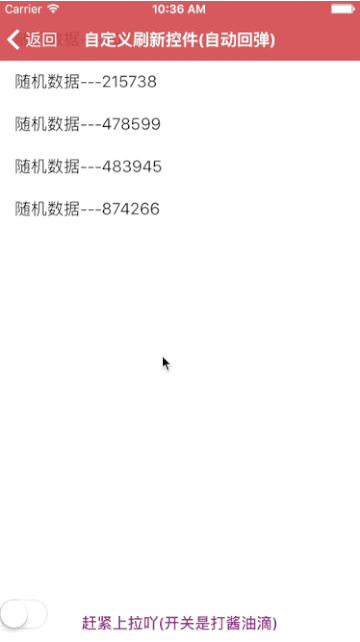

The pull to refresh 10-DIY the control of refresh(Automatic back)

self.tableView.mj_footer = [MJDIYBackFooter footerWithRefreshingTarget:self refreshingAction:@selector(loadMoreData)];
// Implementation reference to MJDIYBackFooter.h和MJDIYBackFooter.m

(上拉刷新10-自定义刷新控件(自动回弹))

UICollectionView01-The pull and drop-down refresh

// 下拉刷新
self.collectionView.mj_header = [MJRefreshNormalHeader headerWithRefreshingBlock:^{
   //Call this Block When enter the refresh status automatically

  //...
   [weakSelf.collectionView reloadData];
   // 结束刷新
   [weakSelf.collectionView.mj_header endRefreshing];
}];


// 上拉刷新
self.collectionView.mj_footer = [MJRefreshAutoNormalFooter footerWithRefreshingBlock:^{
   //Call this Block When enter the refresh status automatically

   // ...
   [weakSelf.collectionView reloadData];
   // 结束刷新
   [weakSelf.collectionView.mj_footer endRefreshing];
}];

// 默认先隐藏footer
self.collectionView.mj_footer.hidden = YES;

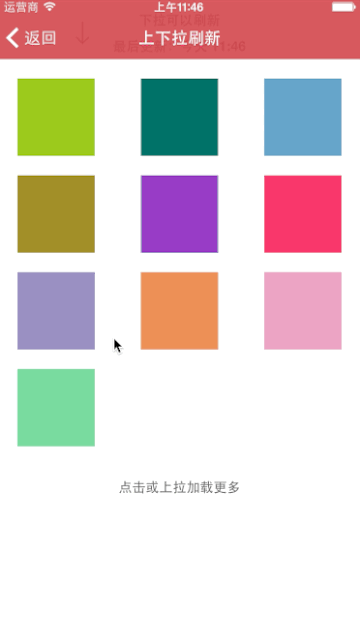

(UICollectionView01-上下拉刷新)

UIWebView01-The drop-down refresh

// 添加下拉刷新控件
self.webView.scrollView.mj_header = [MJRefreshNormalHeader headerWithRefreshingBlock:^{
   //Call this Block When enter the refresh status automatically
}];

(UICollectionView01-上下拉刷新)
