天天品尝 iOS7 甜点 Day14：Interactive View Controller Transitions

发表于 更新于 分类于 Valine：
本文字数： 11k 阅读时长 ≈ 10 分钟

为模态视图控制器添加交互式视图转换

参考

  • GitHub 源码：shinobicontrols/iOS7-day-by-day
  • 天天品尝 iOS7 甜点 :: Day 14 :: Interactive View Controller Transitions

这篇文章可能会用到之前两篇文章的知识：

  • 天天品尝 iOS7 甜点 :: Day 10 :: Custom UIViewController Transitions - 导航视图控制器自定义转场
  • 天天品尝 iOS7 甜点 :: Day 11 :: UIView Key-frame Animations - 关键帧动画

Flip Transition Animation - 翻转过渡效果

默认的模态视图翻转效果

自定义模态视图翻转效果

实现方式：

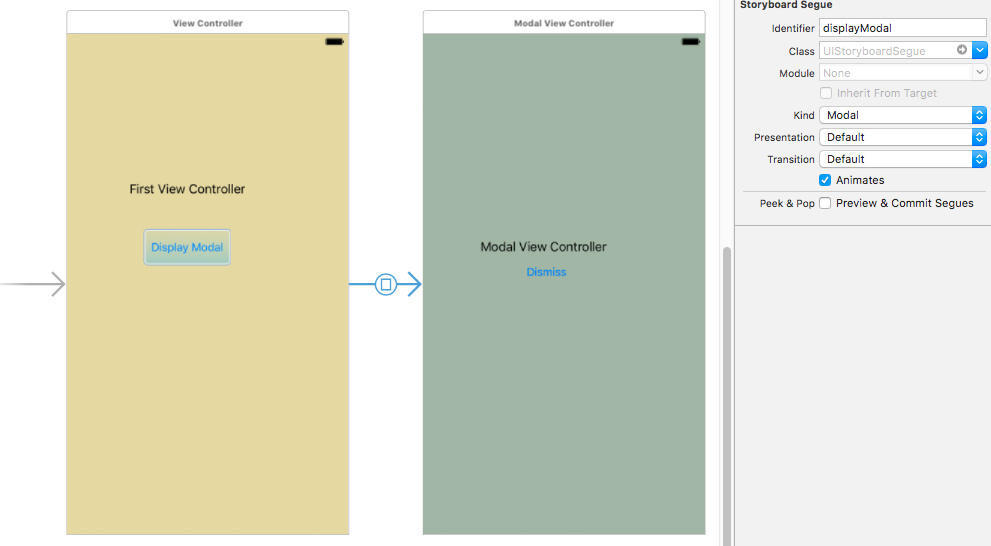

  1. 视图层次结构

  2. 自定义渐变动画类，遵守 UIViewControllerAnimatedTransitioning 协议以实现具体的动画效果：

    <!–hexoPostRenderEscape:

    // ****
    // SCFlipAnimation.h
    #import <Foundation/Foundation.h>

/**
遵守<UIViewControllerAnimatedTransitioning>协议的自定义渐变动画
*/
@interface SCFlipAnimation : NSObject <UIViewControllerAnimatedTransitioning>

/** 确定页面的翻转方向 */
@property (nonatomic, assign) BOOL dismissal;

@end

// ****
// SCFlipAnimation.m
#import "SCFlipAnimation.h"

@implementation SCFlipAnimation

  • (void)animateTransition:(id<UIViewControllerContextTransitioning>)transitionContext
    {
    // 获取各自的视图控制器
    UIViewController *fromVC = [transitionContext viewControllerForKey:UITransitionContextFromViewControllerKey];
    UIViewController *toVC = [transitionContext viewControllerForKey:UITransitionContextToViewControllerKey];

    // 获取视图
    UIView *containerView = [transitionContext containerView];
    UIView *fromView = fromVC.view;
    UIView *toView = toVC.view;

    // 添加 toView 到容器视图
    [containerView addSubview:toView];

    // 设置 frames
    CGRect initialFrame = [transitionContext initialFrameForViewController:fromVC];
    fromView.frame = initialFrame;
    toView.frame = initialFrame;

    // 构建3D转换需要的视角
    CATransform3D transform = CATransform3DIdentity;
    transform.m34 = -1/CGRectGetHeight(initialFrame);
    containerView.layer.sublayerTransform = transform;

    // 翻转方向
    CGFloat direction = self.dismissal ? -1.0 : 1.0;

    // toView 反向翻转 pi/2
    toView.layer.transform = CATransform3DMakeRotation(-direction * M_PI_2, 1, 0, 0);

    // 关键帧动画
    [UIView animateKeyframesWithDuration:[self transitionDuration:transitionContext]

                                 delay:0.0
                           options:0
                        animations:^&#123;
                            &#x2F;&#x2F; First half is rotating in
      [UIView addKeyframeWithRelativeStartTime:0.0
                              relativeDuration:0.5
                                    animations:^&#123;
  &#x2F;&#x2F; fromView 正向翻转 pi&#x2F;2
  fromView.layer.transform &#x3D; CATransform3DMakeRotation(direction * M_PI_2, 1, 0, 0);
                                    &#125;];
      [UIView addKeyframeWithRelativeStartTime:0.5
                              relativeDuration:0.5
                                    animations:^&#123;
  &#x2F;&#x2F; toView 还原
  toView.layer.transform &#x3D; CATransform3DMakeRotation(0, 1, 0, 0);
                                    &#125;];
                        &#125; completion:^(BOOL finished) &#123;
                            [transitionContext completeTransition:![transitionContext transitionWasCancelled]];
                        &#125;];

    }

  • (NSTimeInterval)transitionDuration:(id<UIViewControllerContextTransitioning>)transitionContext
    {
    return 1.0;
    }

@end:hexoPostRenderEscape–>

  1. First View Controller，遵守 UIViewControllerTransitioningDelegate 协议

    <!–hexoPostRenderEscape:

    @interface SCViewController () <UIViewControllerTransitioningDelegate> {
     SCFlipAnimation *_flipAnimation;
    }

@end

@implementation SCViewController

#pragma mark - Lifecycle

  • (void)viewDidLoad
    {
    [super viewDidLoad];
    // Do any additional setup after loading the view, typically from a nib.
    _flipAnimation = [SCFlipAnimation new];
    }

#pragma mark -

  • (void)prepareForSegue:(UIStoryboardSegue *)segue sender:(id)sender
    {
    if([segue.destinationViewController isKindOfClass:[SCModalViewController class]]) {
      SCModalViewController *vc &#x3D; (SCModalViewController *)segue.destinationViewController;
    }
    }

#pragma mark - UIViewControllerTransitioningDelegate

// 弹出模态视图控制器
// 返回遵守 UIViewControllerAnimatedTransitioning 协议的实例

  • (id<UIViewControllerAnimatedTransitioning>)animationControllerForPresentedController:(UIViewController *)presented presentingController:(UIViewController *)presenting sourceController:(UIViewController *)source
    {
    _flipAnimation.dismissal = NO;
    return _flipAnimation;
    }

// 消失模态视图控制器
// 返回遵守 UIViewControllerAnimatedTransitioning 协议的实例

  • (id<UIViewControllerAnimatedTransitioning>)animationControllerForDismissedController:(UIViewController *)dismissed
    {
    _flipAnimation.dismissal = YES;
    return _flipAnimation;
    }    :hexoPostRenderEscape–>

  1. Model View Controller 实现按钮方法

    <!–hexoPostRenderEscape:

    // 使模态视图控制器消失
  • (IBAction)handleDismissPressed:(id)sender {
    [self dismissViewControllerAnimated:YES completion:NULL];
    }    :hexoPostRenderEscape–>

Interactive transitioning - 交互式转换

用手势上滑、下滑操作实现视图转换

  1. 自定义 UIPercentDrivenInteractiveTransition 子类对象，用于手势处理

    <!–hexoPostRenderEscape:

    // ****
    // SCFlipAnimationInteractor.h
    #import <UIKit/UIKit.h>
    #import "SCInteractiveTransitionViewControllerDelegate.h"

@interface SCFlipAnimationInteractor : UIPercentDrivenInteractiveTransition

@property (nonatomic, strong, readonly) UIPanGestureRecognizer *gestureRecogniser;
@property (nonatomic, assign, readonly) BOOL interactionInProgress;

// 实现 SCInteractiveTransitionViewControllerDelegate 自定义交互式转场协议的任意视图控制器
@property (nonatomic, weak) UIViewController<SCInteractiveTransitionViewControllerDelegate> *presentingVC;

@end

// ****
// SCFlipAnimationInteractor.m
#import "SCFlipAnimationInteractor.h"

@interface SCFlipAnimationInteractor ()

@property (nonatomic, strong, readwrite) UIPanGestureRecognizer *gestureRecogniser;
@property (nonatomic, assign, readwrite) BOOL interactionInProgress;

@end

@implementation SCFlipAnimationInteractor

  • (instancetype)init
    {
    self = [super init];
    if (self) {
      self.gestureRecogniser &#x3D; [[UIPanGestureRecognizer alloc] initWithTarget:self action:@selector(handlePan:)];
    }
    return self;
    }

#pragma mark - Gesture recognition
// 手势操作的方法

  • (void)handlePan:(UIPanGestureRecognizer *)pgr
    {
    CGPoint translation = [pgr translationInView:pgr.view];
    // 手势百分比，用百分比的方式来激活指定的动画过程。
    CGFloat percentage = fabs(translation.y / CGRectGetHeight(pgr.view.bounds));
    switch (pgr.state) {

      case UIGestureRecognizerStateBegan: &#123;
      &#x2F;&#x2F; 手势开始，执行翻转动画
      self.interactionInProgress &#x3D; YES;
      &#x2F;&#x2F; 向目标对象传达执行动画的命令
      [self.presentingVC proceedToNextViewController];
      break;
  &#125;

  case UIGestureRecognizerStateChanged: &#123;
      &#x2F;&#x2F; 手势进行中，更新翻转进度
      [self updateInteractiveTransition:percentage];
      break;
  &#125;

  case UIGestureRecognizerStateEnded: &#123;
      &#x2F;&#x2F; 手势结束，分进度值处理
      if(percentage &lt; 0.5) &#123;
          &#x2F;&#x2F; 1.进度小于0.5，取消转场动画
          [self cancelInteractiveTransition];
      &#125; else &#123;
          &#x2F;&#x2F; 2.进度大于0.5，自动完成转场动画
          [self finishInteractiveTransition];
      &#125;
      self.interactionInProgress &#x3D; NO;
      break;
  &#125;

  case UIGestureRecognizerStateCancelled: &#123;
      &#x2F;&#x2F; 取消手势
      [self cancelInteractiveTransition];
      self.interactionInProgress &#x3D; NO;
      break;
  &#125;

  default:
      break;

    }
    }

@end:hexoPostRenderEscape–>

  1. 自定义交互协议
#import <Foundation/Foundation.h>

// 1.该协议的作用：
// 将手势与目标视图相关联，手势开始时，自定义的手势处理类需要向目标视图发送执行视图转场的命令。
// 2.为什么要将手势与目标视图关联呢？
// 因为手势是添加到 window 上的，这样就可以响应预期的行为。
// 3.为什么手势要添加到 window 上而不是视图上？
// 因为动画发生的时候，视图控制器中的视图将会被移除，因此手势就没有办法响应行为了。
@protocol SCInteractiveTransitionViewControllerDelegate <NSObject>

- (void)proceedToNextViewController;

@end

​

  1. First View Controller

    <!–hexoPostRenderEscape:

    // ****
    // SCViewController.h
    #import <UIKit/UIKit.h>

@interface SCViewController : UIViewController

@end

// ****
// SCViewController.m
#import "SCViewController.h"
#import "SCModalViewController.h"
#import "SCFlipAnimationInteractor.h"
#import "SCFlipAnimation.h"
#import "SCInteractiveTransitionViewControllerDelegate.h"

@interface SCViewController () <SCInteractiveTransitionViewControllerDelegate, UIViewControllerTransitioningDelegate> {
SCFlipAnimationInteractor *_animationInteractor;
SCFlipAnimation *_flipAnimation;
}

@end

@implementation SCViewController

#pragma mark - Lifecycle

  • (void)viewDidLoad
    {
    [super viewDidLoad];
    // Do any additional setup after loading the view, typically from a nib.
    _animationInteractor = [SCFlipAnimationInteractor new];
    _flipAnimation = [SCFlipAnimation new];
    }

  • (void)viewDidAppear:(BOOL)animated
    {
    // 添加手势识别器到window对象中。
    // 这是因为动画发生的时候，视图控制器中的视图将会被移除，因此手势就没有办法响应行为了。
    // 把它添加到window上面，将会确保我们期待的行为。
    if (![self.view.window.gestureRecognizers containsObject:_animationInteractor.gestureRecogniser]) {

      [self.view.window addGestureRecognizer:_animationInteractor.gestureRecogniser];

    }
    // 在第一页中，交互的接收者指向 self 自身
    _animationInteractor.presentingVC = self;
    }

#pragma mark -

  • (void)prepareForSegue:(UIStoryboardSegue *)segue sender:(id)sender
    {
    if([segue.destinationViewController isKindOfClass:[SCModalViewController class]]) {
      &#x2F;&#x2F; Set the delegate
  SCModalViewController *vc &#x3D; (SCModalViewController *)segue.destinationViewController;
  vc.transitioningDelegate &#x3D; self;
  &#x2F;&#x2F; 模态视图的手势交互器也指向这个类的手势交互器（弱引用）
  &#x2F;&#x2F; 也就是说，这两个视图的手势交互器指向的是同一个对象
  vc.interactor &#x3D; _animationInteractor;
    }
    }

#pragma mark - SCInteractiveTransitionViewControllerDelegate

  • (void)proceedToNextViewController
    {
    [self performSegueWithIdentifier:@"displayModal" sender:self];
    }

#pragma mark - UIViewControllerTransitioningDelegate

// 弹出模态视图控制器

  • (id<UIViewControllerAnimatedTransitioning>)animationControllerForPresentedController:(UIViewController *)presented presentingController:(UIViewController *)presenting sourceController:(UIViewController *)source
    {
    _flipAnimation.dismissal = NO;
    return _flipAnimation;
    }

// 消失模态视图控制器

  • (id<UIViewControllerAnimatedTransitioning>)animationControllerForDismissedController:(UIViewController *)dismissed
    {
    _flipAnimation.dismissal = YES;
    return _flipAnimation;
    }

// 交互式转场方法1：展示
// 返回一个实现 UIViewControllerInteractiveTransitioning 协议的对象

  • (id<UIViewControllerInteractiveTransitioning>)interactionControllerForPresentation:(id<UIViewControllerAnimatedTransitioning>)animator
    {
    return _animationInteractor.interactionInProgress ? _animationInteractor : nil;
    }

// 交互式转场方法2：消失
// 返回一个实现 UIViewControllerInteractiveTransitioning 协议的对象

  • (id<UIViewControllerInteractiveTransitioning>)interactionControllerForDismissal:(id<UIViewControllerAnimatedTransitioning>)animator
    {
    return _animationInteractor.interactionInProgress ? _animationInteractor : nil;
    }

@end:hexoPostRenderEscape–>

  1. Model View Controller

    <!–hexoPostRenderEscape:

    // ****
    // SCModalViewController.h
    #import <UIKit/UIKit.h>
    #import "SCInteractiveTransitionViewControllerDelegate.h"
    #import "SCFlipAnimationInteractor.h"

@interface SCModalViewController : UIViewController <SCInteractiveTransitionViewControllerDelegate>

  • (IBAction)handleDismissPressed:(id)sender;

@property (nonatomic, weak) SCFlipAnimationInteractor *interactor;

@end

// ****
// SCModalViewController.m
#import "SCModalViewController.h"

@implementation SCModalViewController

#pragma mark - Lifecycle

  • (void)viewDidAppear:(BOOL)animated
    {
    // 重新设置哪一个视图控制器是交互式转场的接收者
    // 在模态页面中，交互的接收者又重新设置为模态页面自身
    self.interactor.presentingVC = self;
    }

#pragma mark - IBActions

// 使模态视图控制器消失

  • (IBAction)handleDismissPressed:(id)sender {
    [self dismissViewControllerAnimated:YES completion:NULL];
    }

#pragma mark - SCInteractiveTransitionViewControllerDelegate

  • (void)proceedToNextViewController
    {
    [self dismissViewControllerAnimated:YES completion:NULL];
    }

@end:hexoPostRenderEscape–>

The End.
